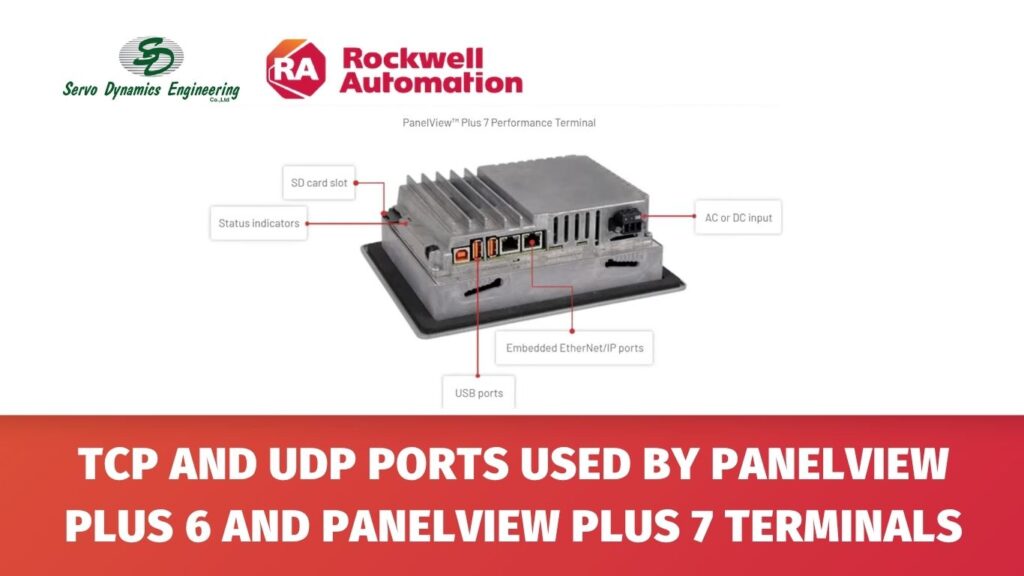

TCP and UDP Ports used by PanelView Plus 6 and PanelView Plus 7 Terminals
Summary
TCP and UDP Ports used by PanelView Plus 6 and PanelView Plus 7 Terminals
Content
The following table is intended to be used as a reference for network administrators and lists all the TCP/UDP ports that are used by the PanelView Plus 6 and PanelView Plus 7 terminals. Some of the ports are closed by default and can be opened by the user. Some of the ports are open by default and cannot be closed by the user.
Not all varieties of PanelView Plus 6 and PanelView Plus 7 terminals contain all possible product features, so some terminals may not have every port in the list usable. Although DCOM components exist on the terminal, they are strictly local DCOM components. There are no dynamic TCP port assignments because there are no remote DCOM components on the terminal.
| Port | Type | Protocol Name | Default State | User Configurable | Description |
| 67 | UDP | DHCP/BOOTP | Closed* | Network Setting relating to DHCP or Static IP Address. Either in FactoryTalk View ME Terminal Configuration or in Control Panel | * This port is only open if the Network Address Type is set to Use DHCP and an active DHCP is occurring. After the DHCP protocol completes, this port is closed. This port is never open if the terminal has been assigned a static IP address. |
| 68 | UDP | DHCP/BOOTP | Closed* | Network Setting relating to DHCP or Static IP Address. Either in FactoryTalk View ME Terminal Configuration or in Control Panel | * This port is only open if the Network Address Type is set to Use DHCP and an active DHCP is occurring. After the DHCP protocol completes, this port is closed. This port is never open if the terminal has been assigned a static IP address. |
| 137 | UDP | netbios-ns | Open |
No |
Name service (NetBIOS-NS) for name registration and resolution. |
| 138 | UDP | netbios-dgm | Open |
No |
Datagram distribution service (NetBIOS-DGM) for connectionless communication. |
| 389* | UDP | LDAP | Closed | LDAP Configuration in FactoryTalk View ME Terminal Configuration | Lightweight Directory Access Protocol (LDAP). Only open when FactoryTalk View ME using LDAP. * Port 389 is the default port number, this can be changed in the FactoryTalk View ME Terminal Configuration’s LDAP Configuration screen. Only available with FactoryTalk View ME versions 8.0 and later. |
| 636* | UDP | LDAPS | Closed | LDAP Configuration in FactoryTalk View ME Terminal Configuration | Lightweight Directory Access Protocol over TLS/SSL. Only open when FactoryTalk View ME using LDAP over SSL. * Port 636 is the default port number, this can be changed in the FactoryTalk View ME Terminal Configuration’s LDAP Configuration screen. Only available with FactoryTalk View ME versions 8.0 and later. |
| 1900 | UDP | UPnP SSDP | Open | UPnP Server in Services Control Panel Applet | UPnP SSDP (Simple Service Discovery Protocol). This UDP port is opened and used by Universal Plug N’ Play (UPnP) devices to receive broadcast messages from other UPnP devices. UPnP devices broadcast subnet-wide messages to simultaneously reach all other UPnP devices. |
| 44818 | UDP | EtherNet/IP | Open |
No |
Rockwell Encapsulation for EtherNet/IP messaging, Ethernet/IP-2. Used by RSLinx Enterprise component. |
| 20 | TCP | FTP | Closed* | FTP Server in Services Control Panel Applet | File Transfer Protocol – Data. * Will open if FTP (port 21) is being used. |
| 21 | TCP | FTP | Open | FTP Server in Services Control Panel Applet | File Transfer Protocol – Command. |
| 80 | TCP | HTTP | Open | Web Server in Services Control Panel Applet | Hypertext Transfer Protocol. Used by ViewPoint feature. Similar to port 443 and 5120. Note: Disabling only the ViewPoint Server (in Services Control Panel Applet) will not close this port. |
| 139 | TCP | netbios-ssn | Open |
No |
NetBIOS session service. Session service (NetBIOS-SSN) for connection-oriented communication. |
| 389* | TCP | LDAP | Closed | LDAP Configuration in FactoryTalk View ME Terminal Configuration | Lightweight Directory Access Protocol (LDAP). Only open when FactoryTalk View ME using LDAP. * Port 389 is the default port number, this can be changed in the FactoryTalk View ME Terminal Configuration’s LDAP Configuration screen. Only available with FactoryTalk View ME versions 8.0 and later. |
| 443 | TCP | HTTPS | Open | Web Server in Services Control Panel Applet | Hypertext Transfer Protocol over TLS/SSL. Used by ViewPoint feature. Similar to port 80 and 5120. Note: Disabling only the ViewPoint Server (in Services Control Panel Applet) will not close this port. |
| 445 | TCP | microsoft-ds | Closed | File Server in Services Control Panel Applet | Microsoft Directory Services. Microsoft-DS Active Directory, Windows shares, Windows file sharing, other services. |
| 631 | TCP | IPP | Open | StartUp Options tab Disable Print Services on Startup in System Control Panel Applet | Internet Printing Protocol. Used by the remote printing functionality of the terminal. See Printing Control Panel applet for more information. Can’t be controlled via FactoryTalk View ME Terminal Configuration. |
| 636* | TCP | LDAPS | Closed | LDAP Configuration in FactoryTalk View ME Terminal Configuration | Lightweight Directory Access Protocol over TLS/SSL. Only open when FactoryTalk View ME using LDAP over SSL. * Port 636 is the default port number, this can be changed in the FactoryTalk View ME Terminal Configuration’s LDAP Configuration screen. Only available with FactoryTalk View ME versions 8.0 and later. |
| 2222 | TCP | EtherNet/IP I/O | Closed |
Yes |
Rockwell PCCC (Programmable Control Communications Commands) for Ethernet. This may be referred to as Implicit Messaging. Will only be open if an FactoryTalk View ME application is talking via Ethernet to a Rockwell PLC-5 Ethernet Processor. Used by RSLinx Enterprise component. |
| 5120 | TCP | HTTP | Open | Web Server in Services Control Panel Applet | Used by Web Server. A HTTP service. Note: Disabling only the ViewPoint Server (in Services Control Panel Applet) will not close this port. |
| 5241 | TCP | FTDiagnostic | Open |
No |
Used by FactoryTalk View ME’s FactoryTalk Diagnostic for FactoryTalk Event Log Messaging. |
| 5800 | TCP | VNC-HTTP | Closed | VNC Server in Services Control Panel Applet | Virtual Network Computer (VNC) functionality. |
| 5900 | TCP | VNC | Closed | VNC Server in Services Control Panel Applet | Virtual Network Computer (VNC) functionality. |
| 44818 | TCP | EtherNet/IP | Open |
No |
Rockwell Encapsulation for EtherNet/IP messaging, Ethernet/IP-2. Used by RSLinx Enterprise component. |
For further TCP/UDP port information regarding other Rockwell Automation products, please reference BF7490 – TCP/UDP Ports Used by Rockwell Automation Products.
Source: Rockwell Automation’s Technote database.
