Introducing CompactLogix 5390 controllers for better footprint optimization
Discover the all-new CompactLogix 5390 from Rockwell Automation. Featuring a local PointMax™ I/O and a simplified system structure, enhanced footprint reduction for smaller, flexible designs without sacrificing capability. Read the full overview, specs, and upgrades in this post.

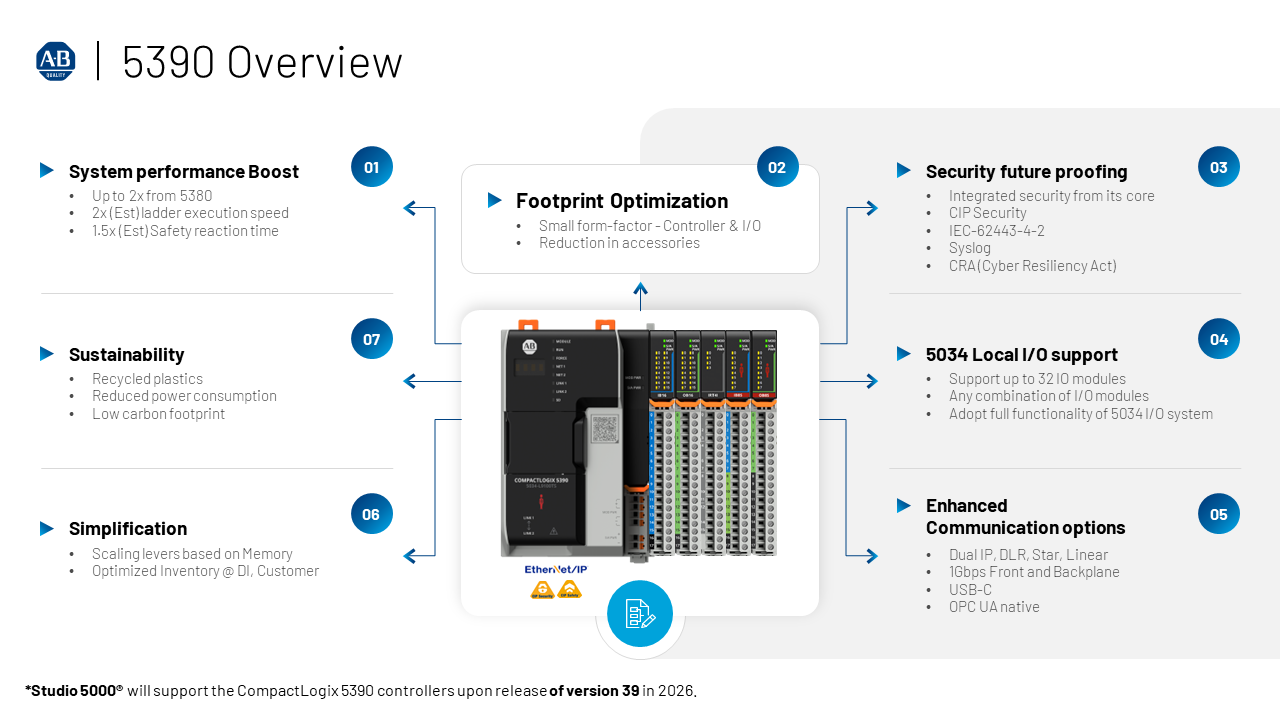

Quick overview of CompactLogix 5390
Redefine your machine architecture with the CompactLogix 5390 Controller. Engineered for space efficiency and data-driven performance, the 5390 model combines a reduced footprint with native PointMax™ I/O to simplify wiring and speed up deployment.
Featuring enhanced communication throughput and global cybersecurity compliance, CompactLogix™ 5390 helps OEMs differentiate their machines while giving end users the speed, safety, and flexibility modern operations demand.
CompactLogix 5390 highlights:
- High-performance processing for complex, multi axis and high-speed applications.
- Up to 2x increase in performance compared to 5380
- 2x (estimated) ladder execution speed
- 1,5x (estimated) safety reaction time
- Footprint reduction and optimized thermal performance for smaller panels and tighter machine layouts.
- Integrated safety helps ensure reliability, preventing hazards through functional safety and cybersecurity for more secure information exchange.
- Enhanced communication options (Dual IP, DLR, Star, Linear) for high-speed data movement, modern configuration and service workflows.
- Lower power consumption and durable construction using recycled materials.

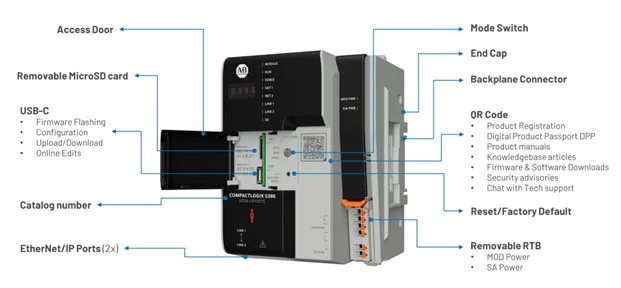

CompactLogix 5390 Product Anatomy
CompactLogix 5390 product anatomy
Features of CompactLogix 5390 controllers
New features of CompactLogix 5390
Transition to MicroSD card
In the CompactLogix 5390 controller, Rockwell Automation replaces the traditional SD card with a MicroSD card, helping reduce the controller’s overall footprint while providing greater flexibility for OEM equipment sourcing.
The MicroSD card is not included with the CompactLogix 5390 controller and must be ordered separately. The compatible 8 GB MicroSD card is available under catalog number 1784-MSD8.
Built-in SIL2 / PLd safety capability
- The CompactLogix 5390 is SIL 2 / PLd safety-capable out of the box, with the Safety Function enabled by default.
- Users can deploy the controller with its safety capabilities without requiring additional configuration to enable the function.
- If the Safety Function is not required for a particular application, users can disable it by unchecking the corresponding option in the Controller Properties tab.
Consolidated system for multiple applications:
- CompactLogix 5390 is a multi-discipline controller, allowing for Standard, Motion and Safety application without having to install a separate controller. OEMs can now change the settings between Standard, Motion or Safety.
- Both standard and safety codes are integrated in one controller to meet functional safety requirements in every application.
- Shock tests are ongoing to evaluate the controller’s suitability for motion applications, including AGV-mounted and automotive applications. The testing is targeting a benchmark of 25 g, 6 ms, 1,000 shocks across three axes, providing validation for applications subject to repeated mechanical shock.
Primary technical features of CompactLogix 5390
| Feature | Specification |
|---|---|
| User memory | 400KB to 10MB |
| Safety memory | 400KB to 10MB |
| MOD power | 10 to 30V DC SELV/PELV |
| SA power | 10 to 30V DC SELV/PELV |
| RTB | 5034-RTB6 (Screw) 5034-RTB6S (Spring) |
| Communication ports | Embedded EtherNet ports USB 2.0 Type C | Full Speed (12 Mbps) and High Speed (480 Mbps) |
| I/O capacity | 164,000 without CIP Security 60,000 with integrity 30,000 with integrity and confidentiality |
| Message Rate Capacity HMI/MSG | 4000 without CIP Security 3000 with integrity 2700 with integrity and confidentiality |
| Spacing | 1 inch (all sides) |
| Corrosive Atmosphere | Severity Level G3/GX (for XT) |
Read more: CompactLogix 5390 complete selection and technical specifications guide
Key benefits of CompactLogix 5390
CompactLogix 5390 allows engineers to unlock new levels of performance, efficiency and design flexibility.
Automate more for less
- Higher performance to handle complex automation tasks and expanded workloads.
- Scalable system options based on Memory, allowing Logix solutions to fit a wide range of applications.
Consistent architecture
- PointMax I/O provides one platform for both local and remote I/O.
- Enables a unified architecture from small machines to large systems.
Space and energy consumption efficiency
- Smaller controller and I/O form factors reduce up to 50% of overall system footprint.
- Ideal for compact machines and space-constrained installations.
- Lower power consumption and power dissipation.
System simplification
- Streamlined catalog with consolidated standard, motion and safety SKUs.
- More ways to scale systems efficiently and cost-effectively.
- Allows migration from CompactLogix® 5380 controllers, 5370 controllers, and MicroLogix 1400.
Connected enterprise ready
- Designed with enhanced security features.
- Improved security and safety for local and remote network communications, in compliance with Cyber Resilience Act (CRA).
- Supports versatile communication options such as OPC UA and open sockets.
Zero Trust architectures ready
- CIP Security: Enforces mutual authentication (mTLS) and encrypted data transport directly across EtherNet/IP.
- IEC 62443-4-2 Compliance: Meets rigorous international technical security standards for industrial component-level integrity.
- Syslog Integration: Centralizes security audit logs and real-time incident tracking to enterprise SIEM systems.
- EU Cyber Resilience Act (CRA) Ready: Aligned with strict emerging regulations requiring mandatory “Security by Design”.
Brief comparison between CompactLogix 5390 and 5380 series
Functional and performance comparison between CompactLogix 5390 and 5380
The CompactLogix 5390 expands on the previous 5380 platform to deliver an upgraded control tier for high-demand, data-driven applications. Featuring 2x faster processing, native 1 Gbps Ethernet ports, and high-density PointMax I/O support, it offers a seamless path to higher throughput and enhanced security.
| Dimension | CompactLogix 5390 | CompactLogix 5380 |
| Performance | 2x faster than 5380 | 5x to 20x faster than 5370 |
| Max motion axes | up to 128 axes | up to 32 axes |
| EtherNet/IP nodes | supports from 60 and up to 300 communication nodes | supports from 16 and up to 180 communication nodes |
| Max TCP connections | 1024 | 512 |
| Min. software requirements | Studio 5000 Version 39 and later | Studio 5000 Version 29 and later |
Footprint comparison between CompactLogix 5390 and 5380

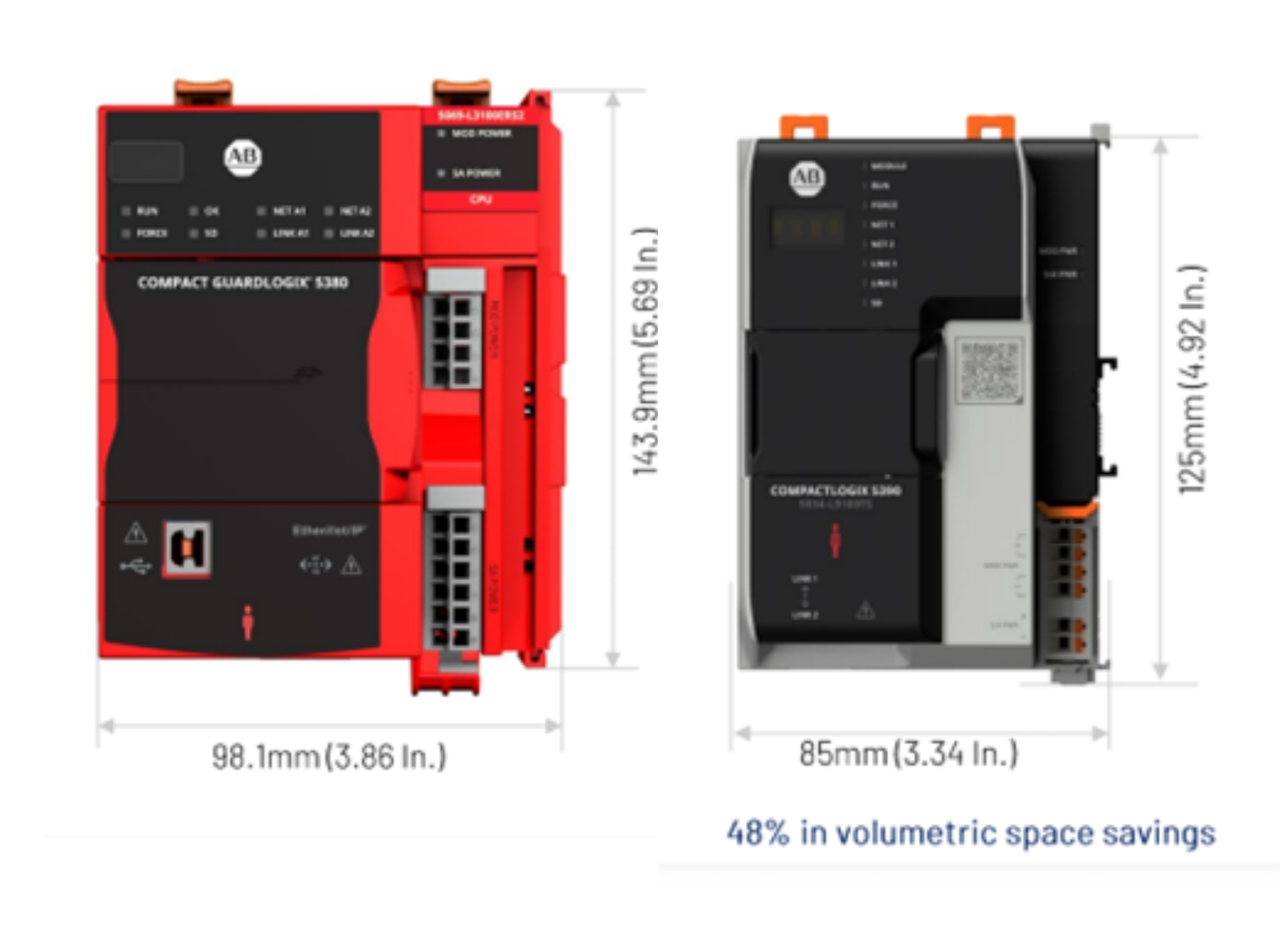

Base configuration
 |
Transitioning to the CompactLogix 5390 architecture enables machine builders to unlock up to 48% volumetric panel savings over previous-generation setups. |

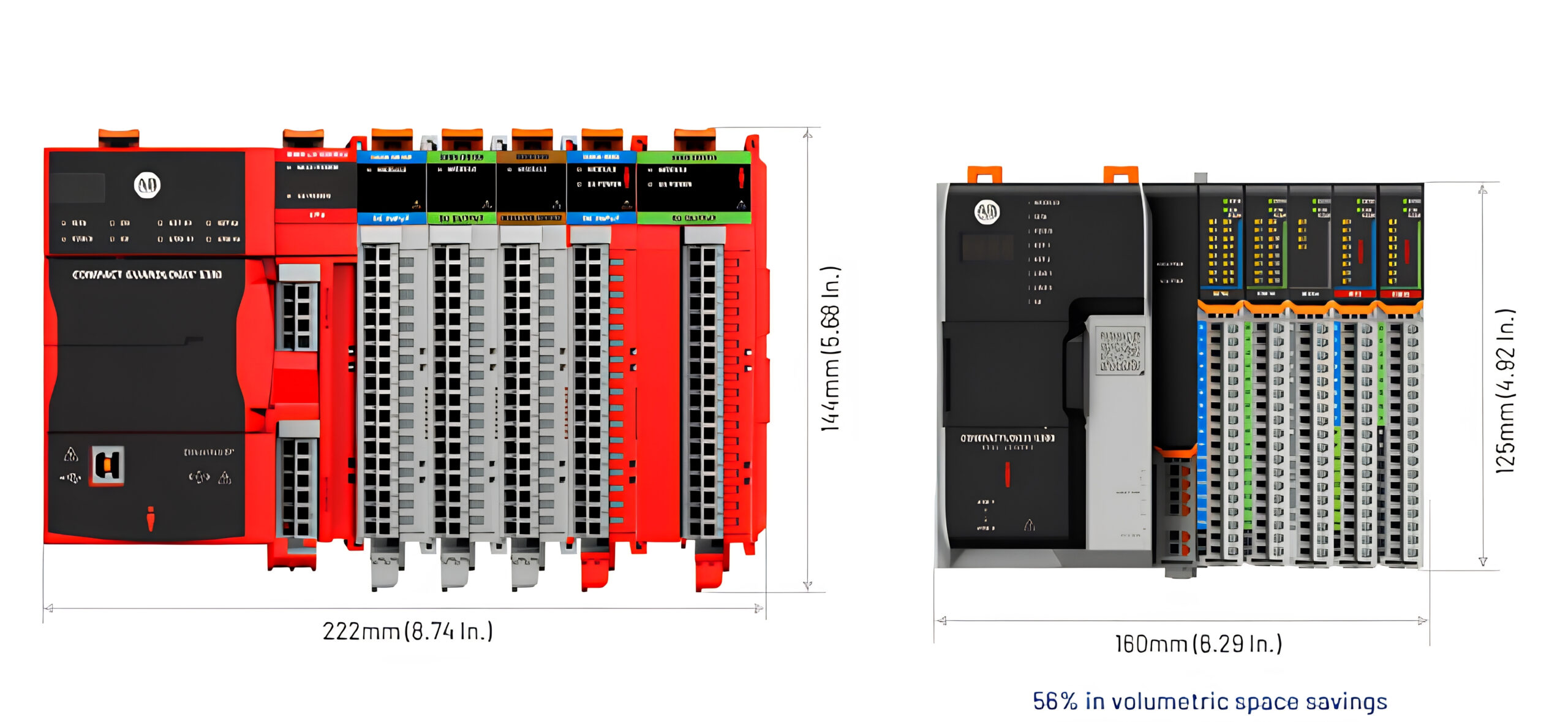

With local I/O Setup
 |
In an example configuration, a setup with CompactLogix 5390 Processor and 16 DI, 16 DO, 4 AI, 8 DIS, 8 DO can save 56% in volumetric space as compared to 5380 + Local I/O |
Read more: In-depth comparison between ControlLogix 5390 and 5380 models.
CompactLogix 5390 model selection guide
| TYPE | CATALOGUE | DESCRIPTION |
| Standard Variants
-25°C to +60°C |
5034-L9004TS | CompactLogix 400KB Controller |
| 5034-L9006TS | CompactLogix 600KB Controller | |
| 5034-L9010TS | CompactLogix 1MB Controller | |
| 5034-L9020TS | CompactLogix 2MB Controller | |
| 5034-L9030TS | CompactLogix 3MB Controller | |
| 5034-L9050TS | CompactLogix 5MB Controller | |
| 5034-L9100TS | CompactLogix 10MB Controller | |
| XT Variants
-40 °C to +70 °C |
5034-L9004TSXT | CompactLogix 400KB XT Controller |
| 5034-L9006TSXT | CompactLogix 600KB XT Controller | |
| 5034-L9010TSXT | CompactLogix 1MB XT Controller | |
| 5034-L9010TNSXT | CompactLogix 1MB XT NSE Controller | |
| 5034-L9020TSXT | CompactLogix 2MB XT Controller | |
| 5034-L9030TSXT | CompactLogix 3MB XT Controller | |
| 5034-L9050TSXT | CompactLogix 5MB XT Controller | |
| 5034-L9100TSXT | CompactLogix 10MB XT Controller |
*Note: XT variants. The harsh environment (XT) variants provide extended protection in corrosive gas environments.
To simplify the product selection process, Rockwell Automation groups the CompactLogix 5390 Series into three product categories based on controller memory capacity. This new design approach gives engineers greater flexibility to select the memory capacity that best matches their application, without having to upgrade to a higher-capacity controller to meet other requirements.
| SIMPLIFIED SELECTION | ||||
| Capacity | Motion Axes | Ethernet Nodes | Local I/O | OPC UA Nodes |
| 400KB – 1MB | 8 | 60 | 16 | 300 |
| 2MB – 5MB | 32 | 200 | 32 | 2000 |
| 10MB | 128 | 300 | 32 | 4000 |
Frequently Asked Questions – FAQs
The CompactLogix 5390 delivers up to 2x faster processing performance and higher safety reaction speeds compared to the 5380 generation. Key hardware updates include:
- Footprint Reduction: Up to 50% cabinet space savings with zero-derating multi-orientation mounting options.
- New I/O Architecture: Transition to the 5034 PointMax I/O system for local backplane expansion.
- Consolidated SKUs: Streamlined model selection combining standard, integrated motion, and CIP Safety capabilities into a single unified hardware platform.
To set up, configure, and operate a CompactLogix 5390 controller, your system must meet specific software, electrical, hardware, and installation requirements.
- Logix Designer Software: Studio 5000 Logix Designer® Version 39 or later (or integration via FactoryTalk® Design Studio).
- Power Supply: External 24V DC PELV or SELV-listed power supply to Module Power (MOD) and Sensor/Actuator Power (SA).
- Local Expansion Modules: Compatible exclusively with the 5034 PointMax I/O platform (supports up to 16 or 32 local I/O modules depending on controller memory variant).
- Mounting: Standard 35mm DIN rail.
- Spacing: Requires a minimum clearance of 1 inch (25.4 mm) on all sides inside the enclosure.
- Orientation: Supports any mounting orientation (horizontal or vertical) without thermal derating
Yes. Projects created in Studio 5000 Logix Designer can be converted by changing the controller type to a 5390 catalog number in V39+. While routine logic translates smoothly, local I/O configurations must be remapped to the new 5034 PointMax I/O platform.
Yes, 5390 controllers will support 5069, 5034, 5032, 5094, 1769, 1734, 1732, 1794, 1746/1747 IO’s as remote IO. Only 5034 IO will be supported as local IO to the controller
No change to the lifecycle of 5380 & 5069 IO portfolio and will remain active. Rockwell Automation is continuing to invest in the platform, recent launches 5069-IF4IH,OF4IH (Sep 2024) & 5069-IB32, OB32 (Mar 2026)
5390 will be available in both IAB tools and Advisor
Yes, 5390 controller family will be able to support any mounting orientations without derating.
There is no difference in configuration between using 5034 as local IO versus remote IO to 5390 controllers
Yes, XT variants will come with G3/GX and Rockwell Automation internal chemical composition specs.
No, 5390 Controllers will not be shipped with a MicroSD card. It is available as an accessory, catalog number 1784-MSD8 (8GB microSD card).
No, 5390 Controllers will not be shipped with RTB. It is available as an accessory, catalog number 5034-RTB6 (Screw type), 5034-RTB6S (Spring type)
