Name: Wall Mount Signal Towers (80.2mm profile) - Servodynamics
SKU: WME-D-24-RYG

FB type: Built-in audible alarm up to 93dB (at 1m).
Installation: Easy vertical and horizontal installation with mounting bracket.
Main body: Made of PC resin.
Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
NPN/PNP Compatible: 24V DC type ONLY.
LED Module Colors: Red, Amber, Green, Blue, White.

Dimensions	80.2mm profile
Rated Voltage	24V DC 100V-240V AC
Functions	・Continuous ・Continuous, Flashing and Buzzer (Only FB Type)
Mounting Location	Indoor Use
Mounting Direction	Upright, Upward, Downward, Horizontal
Body Color	Off White

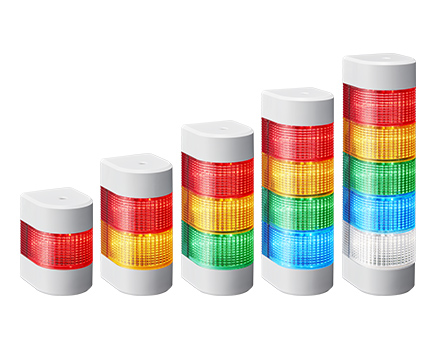

Stackable Tiers	Available in 1, 2, 3, 4 or 5 tier versions
Module Colors	Red Amber Green Blue White
Audible Style	Buzzer Sound Buzzer1 : Rapid intermittent beep 1 Buzzer2 : Rapid intermittent beep 2 Sound Pressure Level (Typ.) 93db (at 1m)
Conformity Standards	CE
Protection Rating	IP54

Wall Mount Signal Towers (80.2mm profile)
