Name: Rugged, Outdoor Rated Flashing Beacon - Servodynamics
SKU: REL-24-R

Environmentally Rugged Construction

Superior Resistance to Vibration and Impact

– Vibration Resistance 110m/s²
– Impact Resistance 1,000m/s²

Superior Resistance to Dust and Water

Water tight test – IP69K construction for enhanced dust and water resistance
– Suitable for high-temperature and high-pressure cleaning

>>Water tight test video

Resistant to temperature and humidity variations

Operating Ambient Temperature: -40 to +85℃
Ventilation function prevents fogging due to condensation

Ventilation function

Complies with various international standards, including EMC (electromagnetic compatibility): ISO13766-1 and environmental testing: ISO16750, regulated for vehicles

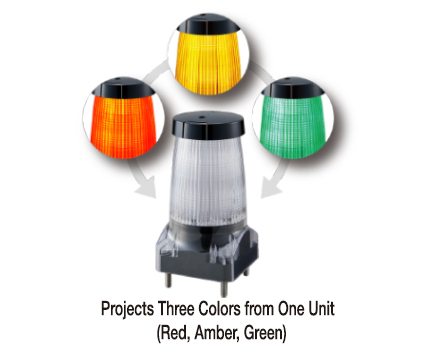

Projects Three Colors from One Unit

Operating statuses can be deciphered intuitively with a combination of 3 light colors and different flash patterns
Distinct flash patterns can be allocated for each color to convey warnings and statuses to individuals with color vision deficiencies

*Above 3 flash patterns are pre-configured and fixed for voltage controlled models
*13 flash patterns can be configured for CAN communication models

>>Flash pattern video

2 Control Options Available

CAN Communication Control

Compatible with SAE J1939: CAN communication protocol highly suited for construction machinery.
13 types of flash patterns and 4 levels of dimming can be configured through communication control.
Operating status of light color, including flash pattern, can be monitored and acquired through CAN communication.
Automatic detection and connection at 250kbps/500kbps

Standard Voltage Control

Standard Voltage Control
Non-communication type, controllable with conventional voltage application
3 flash patterns are fixed and pre-configured for optimal status indication in red, amber and green.

*Status acquisition function is not supported for this model
