Rotating Beacon with MP3 Voice Annunciator

Name: Rotating Beacon with MP3 Voice Annunciator - Servodynamics
SKU: RFV-24F-R

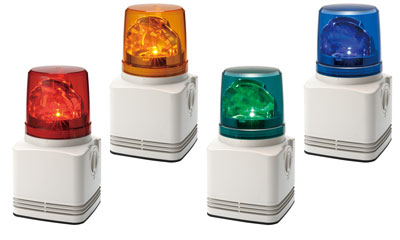

This LED-based Rotating Beacon with MP3 Voice Annunciator delivers up to 95 dB at 1 meter and plays clear, customizable audio messages via SD card. Designed for maintenance-free operation with long-life LEDs, it features volume adjustment, a -15 dB night mode, simultaneous or independent operation of beacon and sound, and NPN open collector input for PLC control. Available in red, yellow, green, and blue dome colors with a simple test switch for quick setup.

Request Quote Add to Request

SKU: RFV-24F-R Category: Industrial Automation

100% Genuine & Brand New Products

Official Manufacturer Warranty

Guaranteed Authenticity

After-Sales Service Support by Servo Dynamics

Fast Delivery Support on the Same Day*

*For all in-stock products

Description

• Field programmable via SD card (sold separately).
Supports up to 64 seconds of recorded audio (at 64 kbps), triggered by 4-bit or 15-channel binary input.
• Output volume adjustable from 0 to 95 dB at 1 meter, suitable for various environments.
• Vibration-resistant design rated at 4.5G ensures stable performance in high-vibration environments.
• Conforms to CE, RoHS, IP54 standards (UL, c-UL pending).
• Key features:
1. Equipped with a long-life, high-intensity LED rated for over 5 years of continuous 24/7 operation.
2. Enhanced visibility through precision-engineered optical reflector.
3. Gear-driven mechanism ensures reliable activation even after 10 years of inactivity.
4. Secure dome-lock structure prevents detachment under vibration.

Specifications

DIMENSIONS	– Ø100 mm
RATED VOLTAGE	– 24 V DC – 100 V AC – 220 V AC
AUDIO FORMAT	– Up to 64 seconds total (pre-recorded at factory) Operable via 4-channel bit input or 15-channel binary input * MPEG Layer-3 audio coding licensed from Fraunhofer IIS and Thomson Licensing
VOLUME	– Adjustable up to 95 dB (measured at 1 meter)
BODY COLOR	– Light gray
GLOBE COLORS	– Red – Amber – Green – Blue
GLOBE MATERIAL	– Polycarbonate resin
INGRESS PROTECTION	– IP54
OPTIONS	– RF-001 – RF-002 – SDV-2GP
