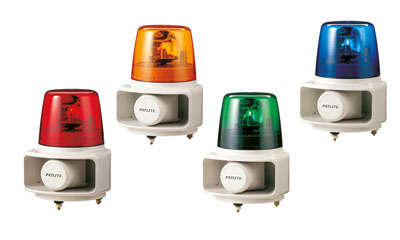

Rotating Beacon with Audible Alarm Horn

Name: Rotating Beacon with Audible Alarm Horn - Servodynamics
SKU: RT-24E-R

This rotating beacon with an integrated audible horn delivers a powerful 105dB output (at 1m), featuring a wide frequency range for clear, low-to-high tone alerts. Equipped with 32 built-in tones and adjustable volume, it suits noisy environments and outdoor use with its weather-resistant housing. Supports binary and bit input control, NPN open collector compatibility, and includes a test playback switch for easy installation setup.

Request Quote Add to Request

SKU: RT-24E-R Category: Industrial Automation

100% Genuine & Brand New Products

Official Manufacturer Warranty

Guaranteed Authenticity

After-Sales Service Support by Servo Dynamics

Fast Delivery Support on the Same Day*

*For all in-stock products

Description

Product Features

32 preloaded sounds integrated in a single unit.
Engineered for rugged performance and operational safety.
Integrated Alarm: Output up to 105 dB at 1 meter; volume adjustable.
Mounting Orientation:
・Indoor: Vertical, inverted, or horizontal.
・Outdoor: Vertical only (horn must not face upward).

Important Notice

PATLITE Corporation has not secured licensing rights for certain copyrighted music and melodies included in RT-A, C, and D models for use outside Japan.
For details, please consult your local PATLITE sales representative.

Model Specifications

DIMENSIONS	– Ø162 mm
RATED VOLTAGE	– 24 V DC – 100 V AC – 200 V AC
AUDIBLE STYLE	– RT-A/C/D/E: 32 factory-recorded tones
SOUND SELECTION	– Digitally recorded high-fidelity audio
VOLUME	– Up to 105 dB at 1 meter; adjustable
STACKABLE TIERS	– Dry contact input (e.g., switches or relays) – Open-collector input (NPN, compatible with 24 V DC / 120 V AC) – Direct voltage input (24 V DC only; K/L-type models — see wiring diagram)
GLOBE COLOR	– Red – Amber – Green – Blue
GLOBE MATERIAL	– AS resin
PROTECTION RATING	– IP23 (IP65 available upon request)
OPTIONS	– SZ-008 – SZ-023
