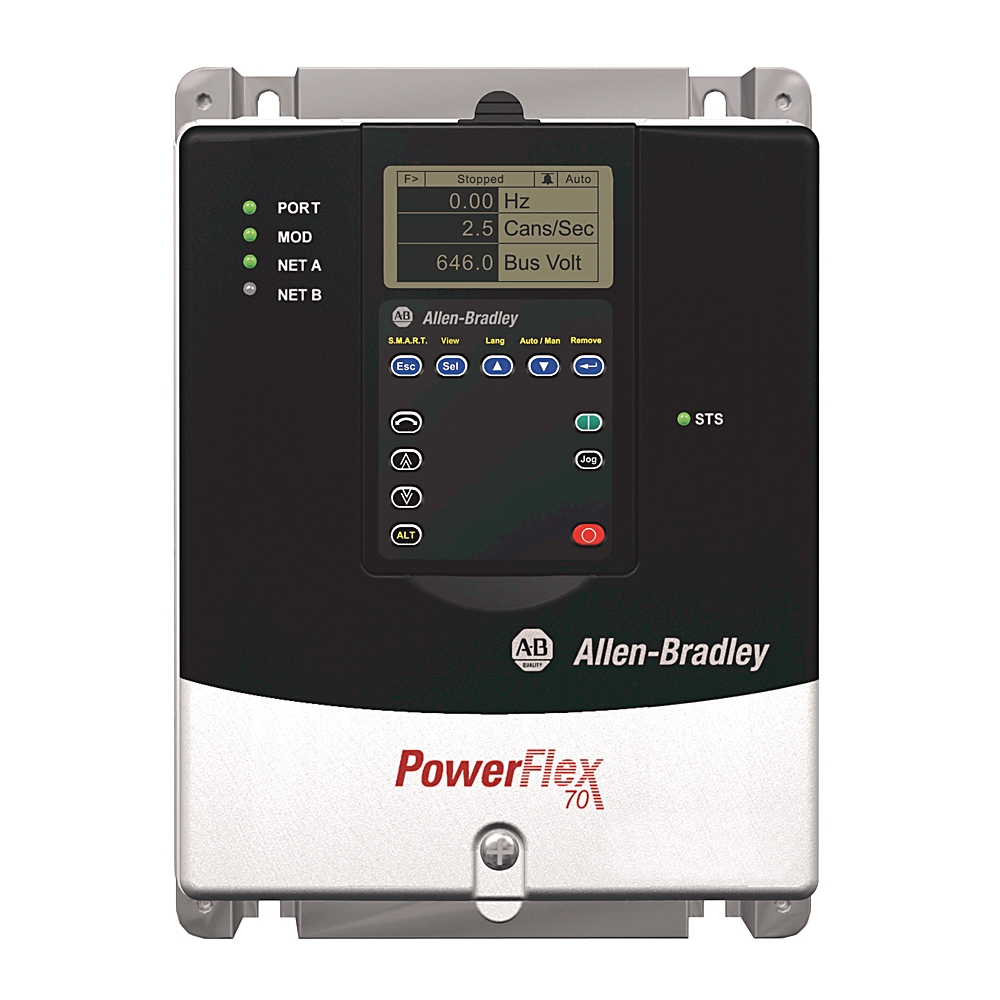

Representative Rendering, Not The Actual Product
PowerFlex70 AC Drive, 400 VAC, 3 PH, 5 Amps, 2.2 kW Normal Duty, 1.5 kW Heavy Duty,Panel Mount – IP20 / NEMA Type 1, with conformal coating, No HIM (Blank Plate), Brake IGBT Installed, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), No Communication Module, Enhanced Control , No Feedback
Product Details
| BASE DRIVE INFORMATION | |
|---|---|
| Input Voltage | 400 VAC, 3 PH |
| Output Current | 5 Amps |
| Enclosure | Panel Mount – IP20 / NEMA Type 1, with conformal coating |
| Frame Size | Frame Size B |
| Output Current Information | Output Amps: 5A Cont, 5.5A 1 Min, 7.5A 3 Sec |
| Brake IGBT | Brake IGBT |
| EMC Filtering Options | Second Environment Filter per CE EMC directive (89/336/EEC) |
| OPTIONS INFORMATION | |
| Base Plus Options | Base Plus Options Method |
| Human Interface Module | No HIM (Blank) |
| Internal Communication Module | No Communication Module |
Replacement Parts
| Product Type | Base Drive(s) [Level 3] |
|---|---|
| Catalog Number | 20AC5P0A0AYNNNC0 |
| Description | Base Replacement Drive NO OPTIONS |
| Quantity | 1 |
| Product Type | Drive Option(s) |
|---|---|
| Catalog Number | 20A-DG01 |
| Description | DriveGuard Safe-Off Option Board (works only with PowerFlex 70 Enhanced Control) |
| Quantity | 1 |
| Product Type | Drive Option(s) |
|---|---|
| Catalog Number | AK-M9-115VAC-1 |
| Description | 115VAC Digital Interface |
| Quantity | 1 |
| Product Type | Drive Option(s) |
|---|---|
| Catalog Number | 20-HIM-A0 |
| Description | Blank Plate |
| Quantity | 1 |
| Product Type | Level 2 Spare Part(s) – Circuit Boards and Sub-Assemblies |
|---|---|
| Catalog Number | SK-M9-FAN1-ABCD1 |
| Description | External Fan (Heat Sink) A & B Frame |
| Quantity | 1 |
| Product Type | Miscellaneous Hardware and Cables |
|---|---|
| Catalog Number | SK-M9-SCB1 |
| Description | Service Connection Board |
| Quantity | 1 |
| Product Type | Miscellaneous Hardware and Cables |
|---|---|
| Catalog Number | SK-M9-CPLT1-B1 |
| Description | Conduit Plate, IP 20 NEMA Type 1 and Flange Mount |
| Quantity | 1 |
| Product Type | Miscellaneous Hardware and Cables |
|---|---|
| Catalog Number | SK-M1-CVR1-B1 |
| Description | Front Cover with Powerflex 70 Logo, IP 20 NEMA Type 1 |
| Quantity | 1 |
