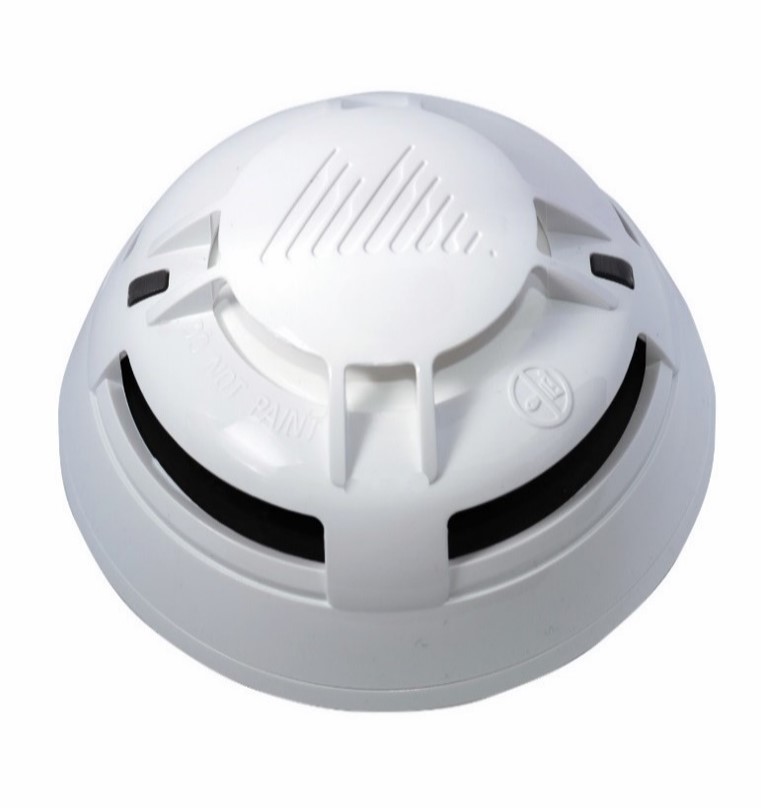

Name: MIX-4030/ MIX-4030-ISO TRI-MODE HEAT DETECTOR INTEGRATED ISOLATOR - Servodynamics
SKU: MIX-4030/ MIX-4030-ISO

Model	MIX-4030/ MIX-4030-ISO
Manufactures	Mircom
Origin	Canada
Standards	NFPA 72 Standard; UL & ULC
LED	Tri-color (Green/Red/Amber) LED: RED (Steady on) – ALARM condition, GREEN (Flash) – NORMAL condition, AMBER (Steady on) – FAULT condition
Standard Features	Built-In short-circuit isolator (Optinal)
	MIX-4030-ISO is equipped with a bi-directional short-circuit isolator to protect against wiring faults and loop failure.
	Different LED colors for Alarms and Troubles
	Three operational modes of heat detection
	The device can be secured by a unique Anti- Tamper feature.
	Easy address configuration with the hand-held programmer MIX-4090
	Operation Modes: – Rate of rise heat detection (135ºF/57ºC) – Fixed heat detection (135ºF/57ºC) – Fixed heat detection (175ºF/79ºC)
	Open style mounting bases offer easy wiring and low pressure locking
	Remote output can be controlled by the panel
	Low standby current.
	Base has detachable tab for labeling device address
	Leverages interrupts to quickly report alarm conditions to fire alarm control panels.
	Magnet test option helps with commissioning and maintenance
	A remote LED indicator can be wired directly to the sensor.
Operating voltage	15 to 30VDC
Normal operating current	160μA
Alarm current	3.2mA (LED on)
Operating environment	15ºF to 120ºF (-9ºC to 49ºC)
Relative humidity	10% to 93% Non-condensing
Diameter	4.25″
Height	1.75″

MIX-4030/ MIX-4030-ISO TRI-MODE HEAT DETECTOR INTEGRATED ISOLATOR
