Name: MIX-4003-S Sounder Base - Servodynamics
SKU: mix-4003-s

Model	MIX-4003-S
Manufactures	Mircom
Origin	Canada
Standards	NFPA 72 Standard; UL
Standard Features	Multiple options of tone patterns
	Three-pulse temporal pattern fire alarm signal required by NFPA 72.
	Two volume levels: low and high
	Open style mounting bases offer easy wiring and low-pressure docking.
	Save time with multiple mounting options.
	Compatible with all MIX-4000 detectors
Nominal voltage	Regulated 24VDC/VFWR
SLC Standby Current	1.56mA
SLC Alarm Current	2.34 mA
Operating RMS Currents	46 mA Max
Audible Ratings	– 84.6 Max with UL Reverberant (dBA@10ft) – 91.7 Max with ULC Anechoic (dBA@3m)
Operating environment	0ºC to 49ºC (32ºF to 120ºF)
Humidity range	0% to 93%
Diameter	182mm (7-3/16 in)
Height	32mm (1-1/4 in)

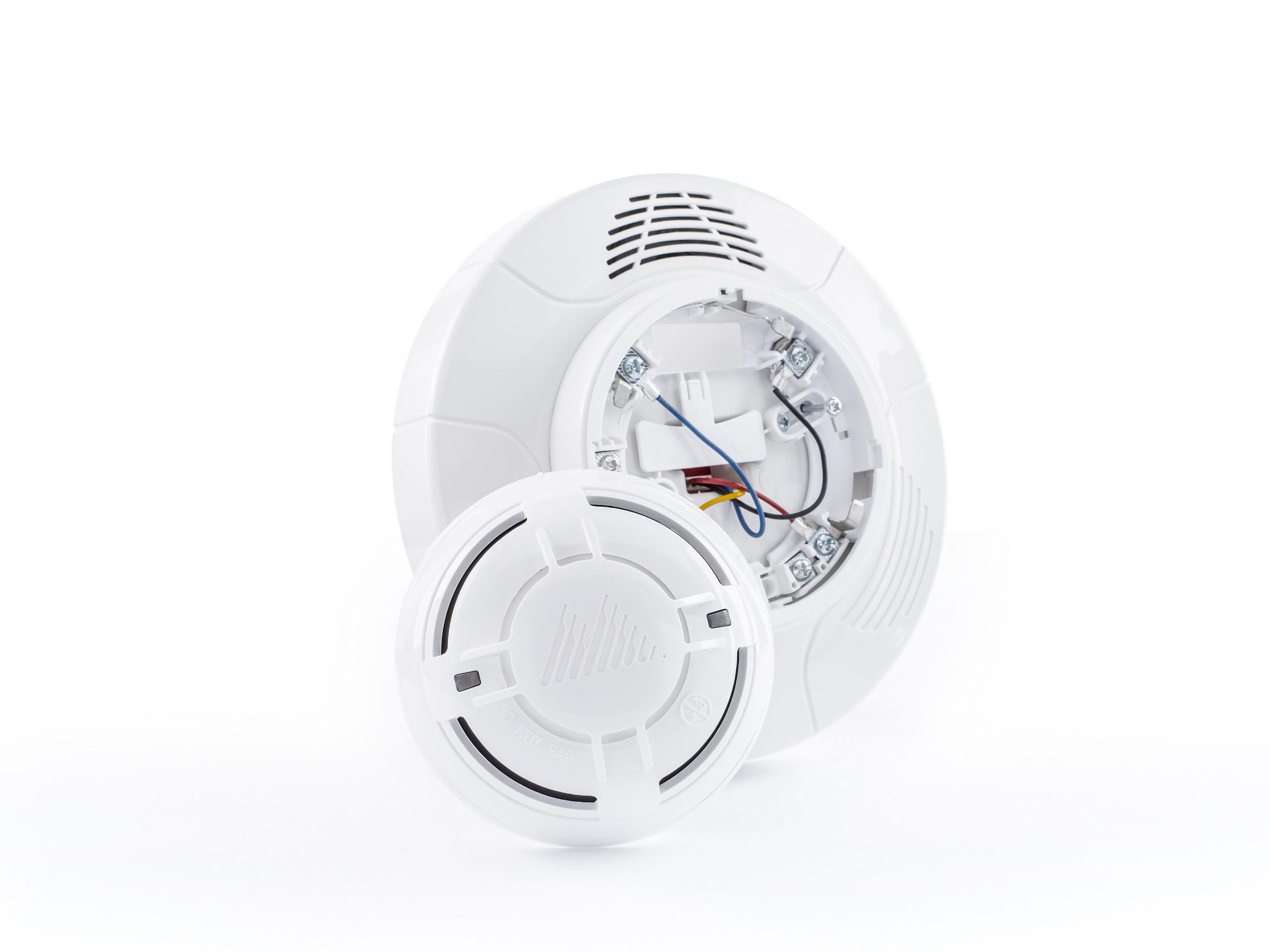

MIX-4003-S Sounder Base
