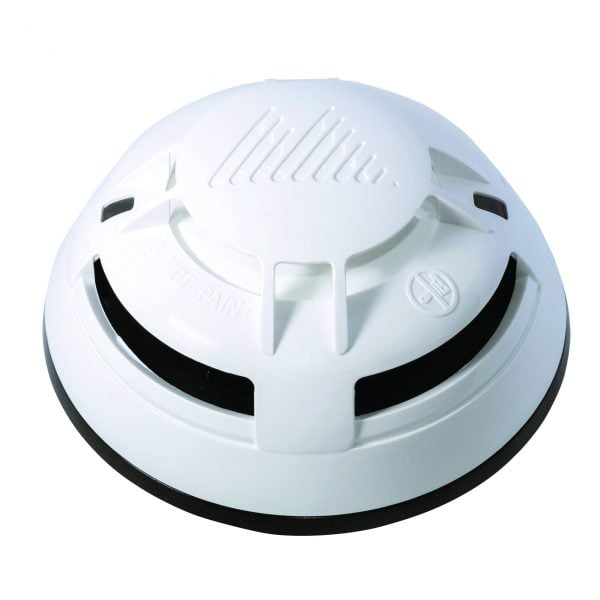

NEW MIX-4030 / MIX-4030-ISO are tri-mode heat detectors with an integrated microprocessor that constantly monitor the environment in order to provide early warning of a fire condition. All MIX-4000 series smoke sensors communicate with panels using a fully digital protocol.

FEATURES

• The MIX-4030 / MIX-4030-ISO work with MGC compatible control panels
• Can add up to 240 MIX-4000 series devices on a single SLC
• Different LED colors for Alarms and Troubles
• Use advanced software algorithms for smoke detection
• Protect against nuisance alarms caused by dust, insects or other debris
• Multiple sensitivity settings
• Compatible with the full series of MIX-4000 input and control modules
• A unique Anti-Tamper feature provides additional security to all devices
• Easy address configuration with the hand-held programmer MIX-4090


OPERATING MODES
57°C (135°F) – Fixed Heat detection
79°C (175°F) – Fixed Heat detection
57°C (135°F) – Rate of Rise

BENEFITS

• Open style mounting bases offer easy wiring and low pressure locking
• Bases are available in 4” or 6” sizes
• In addition, all bases have a detachable tab for easy device address labeling
• The MIX-4030-ISO has a bi-directional short-circuit isolator in order to protect against wiring faults and loop failure
• Low standby current
• Magnet test option helps with commissioning and maintenance

UL / ULC / FM Approved Standards.
