Model	MIX-4010-DUCT
Manufactures	Mircom
Origin	Canada
Standards	NFPA 72 Standard; UL 268 (7th ed.),ULC
LED Operation	– Multi-function status LED indicators for Alarm and Trouble conditions – Remote LED indicator function
Standard Features	Air velocity rating from 300ft/min to 4,000 ft/min
	Clear cover allowing visual inspection
	The Duct Smoke Detector housing is designed to optimize the air flow on the smoke detector
	Venturi effect on sampling tubes allows smoke detection at very low duct air velocities
	The unique installer friendly one-pipe design ensures correct operation for air sampling inflow and outflow
	Multiple sampling tube options that fit on a wide range of duct widths
	Adjusts to multiple mounting configurations using a flexible mounting bracket.
	Simple and Easy installation
	Easy address configuration with the hand-held programmer MIX-4090
	Relay contact option through the FACU
	Remote LED indicator function
	Advanced customizable remote test function
	Test port provides functional smoke testing access with cover in place.
Operating Voltage	15 to 30 VDC
Normal operating current	160 μA (LED flashing)
Alarm Current	3.2 mA (LED on)
Nominal Sensitivity range	1.52% ft – 2.05% ft
Duct Air velocity	300 – 4,000 ft/min
Operating environment	32°F to 100°F (0°C to 37.8°C)
Dimensions	279 x 165 x 83 mm (11x 6.5 x 3.3 in)
Weight (g)	0.84 kg (1.85 lb)

Brand	Mircom

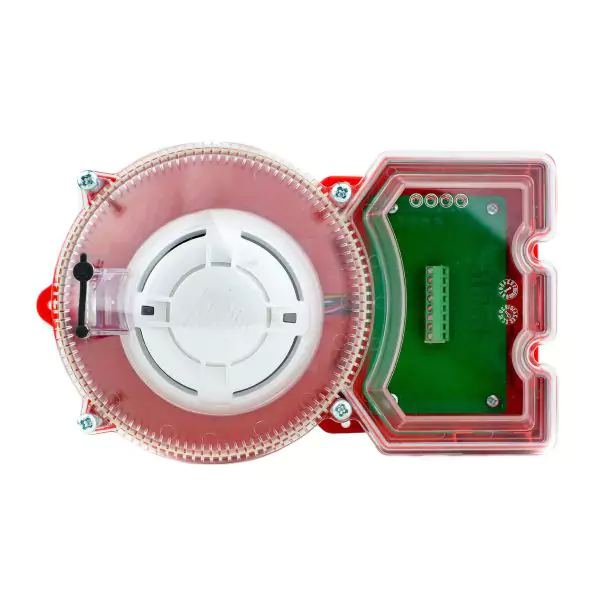

Mircom MIX-4010-DUCT Photoelectric Duct Smoke Detector
