LR5-LAN – Ø50 Signal Tower (Ethernet Communication)

This Signal Tower Light is designed to connect to industrial PCs and PLCs via LAN, enabling control through Ethernet communication. Supporting general protocols such as HTTP(S) and Modbus/TCP, it ensures easy operation.

Request Quote Add to Request

Category: Patlite Tag: English

100% Genuine & Brand New Products

Official Manufacturer Warranty

Guaranteed Authenticity

After-Sales Service Support by Servo Dynamics

Fast Delivery Support on the Same Day*

*For all in-stock products

Description
Additional information

Direct LAN Control from Industrial PCs/PLCs Makes Configuring & Signaling Easy

Before: In an industrial PC-controlled system, a contact output board was being used, leading to an increase in component count and complications in inventory and delivery management.

After: With direct control of signal towers via HTTP or Modbus/TCP, the need for a contact output board has been eliminated.

Usage Scenarios

Control with Industrial PC/PLC

Command control directly from Industrial PCs or PLCs.
Eliminate the need for contact output boards and reduce the number of required contact points.

Semiconductor Manufacturing Equipment Machine Tools

Notification from Higher-Level Systems

SCADA and production management systems can display status and alerts using standard protocols. By visualizing alerts not only on monitors, but also through signal towers (which are common in manufacturing environments), the operators can quickly grasp information and prevent oversights.

Notification from SCADA and Other Systems

Simple Software Design

Command Generation Feature

After logging into the LR5-LAN via a web browser, select the desired operation from the setting screen to display the corresponding command. This allows for easy command verification without the need to read the user manual, reducing time spent on software development.

Sample Source Code

Sample source code for operating the LR5-LAN is available on the product?s web page. Various programming languages are provided for Windows. and Linux, allowing you to quickly test it using your preferred or project-specific language.

Comprehensive Flashing Presets

Seven preset patterns for LED control are available. Since Flashing operations can be executed through command control alone, it reduces the effort required for setting clock pulses in PLCs.

>> Check Actual Operation

Host Device Connection Verification Function

The connection with the device can be checked. If the connection is lost, the LED unit provides a notification, enabling host-to-host Ping monitoring.

Monitoring One Node for Host Communication Verification Monitoring Example

Reduce Wiring Labor

Reduce Man-hours

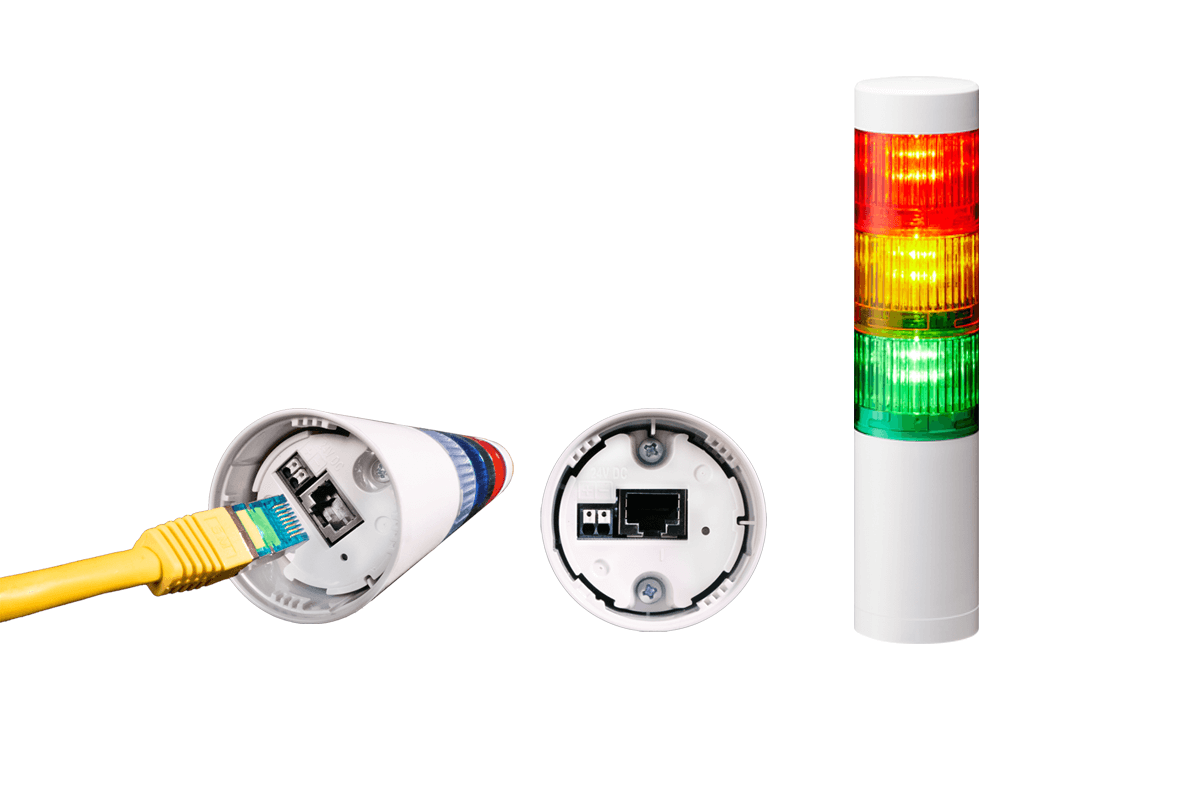

Power is supplied with 24V DC, and the unit is controlled via an RJ-45 connector with LAN cable. The wiring work can be reduced in comparison to wire leads.

Product Structure

Easy Setup

By using the optional ADP-001C, power can be supplied from an AC outlet. Even if 24V DC is not available, the ADP-001C can easily be implemented without construction.

Power Supply
