LA6-POE – Ø60mm Ethernet Programmable LED Signal Tower Light with PoE

Category: Patlite Tag: English

100% Genuine & Brand New Products

Official Manufacturer Warranty

Guaranteed Authenticity

After-Sales Service Support by Servo Dynamics

Fast Delivery Support on the Same Day*

*For all in-stock products

Ethernet connection with PoE (Power over Ethernet) support, enabling single cable installation
Supports Modbus TCP/IP and HTTP protocols to work seamlessly with your existing infrastructure
Built-in web interface for quick and easy setup and configuration
Includes 21 programmable LED colors and 11 selectable alarms for unambiguous indication
Features a mirroring function for replicating the visual and audible statuses from a master LA6-POE on up to 8 remote slave LA6-POE
Built-in terminal block as an alternative control method

DIMENSIONS	– 60mm Diameter
OPERATING VOLTAGES	– 24V DC – Power over Ethernet (PoE): 48V DC
Controls	– Wire inputs (4 digital inputs) – Network commands – HTTP – Modbus TCP – Socket (PNS, PHN – PATLITE developed protocols)

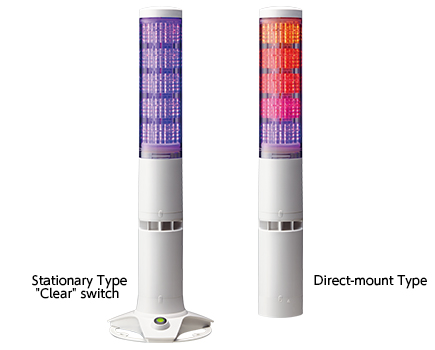

BODY STYLE	TN: Direct Mount Type SN: Stationary Type
BODY COLOR	– Off-white – Silver (America only)
STACKABLE TIERS	– 5 Module
MODULE COLORS	21 colors
AUDIBLE STYLE	– 11 Alarm sounds available
Volume	– Max 85dBVolume – Adjustable up to Max 85dB
CONFORMITY STANDARDS	– EMC Directive – RoHS Directive – UL 508 – FCC – KC
PROTECTION RATING	– IP54 (IEC 60529)
