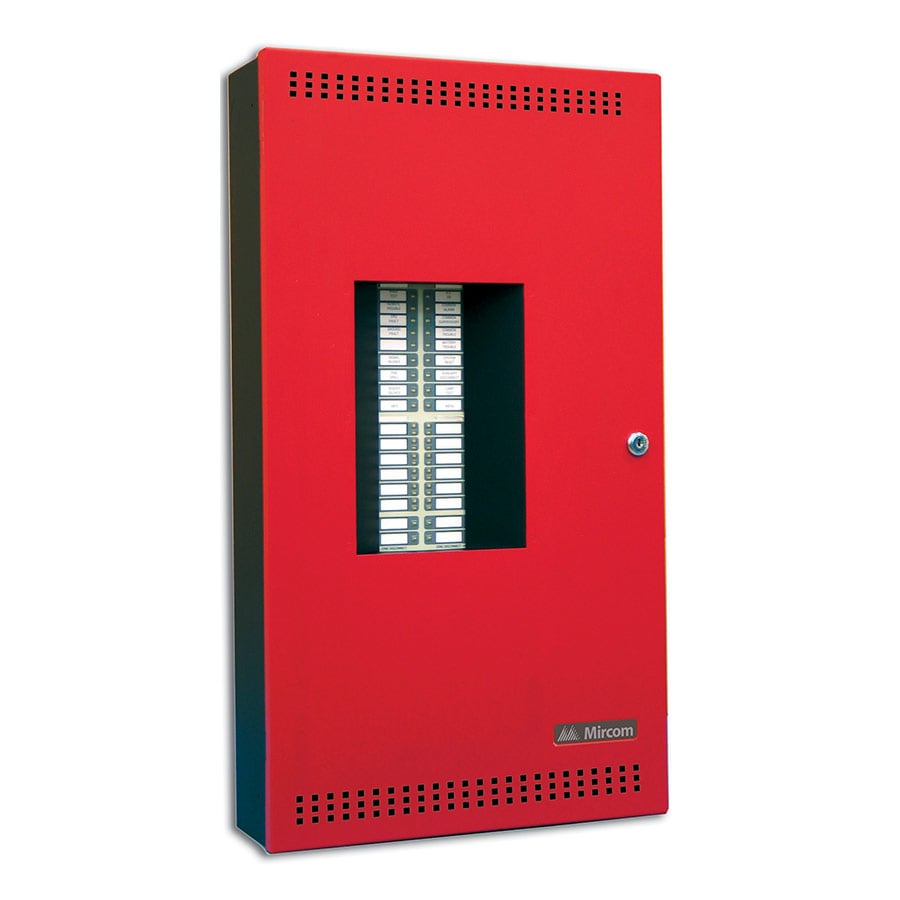

Name: FA-301-8LR Eight Zone LED Display Fire Alarm Control Panels - Servodynamics
SKU: fa-301-8lr
Price: 16100000 VND
Availability: InStock

Model	FA-301-8LR
Manufactures	Mircom
Origin	Canada
Standards	Listed to UL 864, 10th edition and ULC-S527, 4th Edition
Standard Features	Available in eight zone configurations
	Front panel (using CFG-300 configuration tool) and PC programmable
	Remote upload/download capabilities
	Base panel is equipped with Class “B” (Style “B”) initiating circuits which may be configured as Class “A” (Style “D”) using a Class “A” converter module
	Initiating circuits may be configured as Alarm, Verified Alarm, Waterflow Alarm, Sprinkler Alarm, Latching or Non-Latching Supervisory, Monitor and Trouble-Only
	Base panel is equipped with Class “B” (Style “B”) indicating circuits which may be configured as Class “A” (Style “Z”) using a Class “A” signal converter module
	Individual disconnect buttons for both initiating and indicating circuits
	Audible signals may be configured for Steady, Temporal Code, California Code and March Time
	Indicating Circuits may be configured as Silenceable or Non-Silenceable for both signals and strobes
	Built-in sync protocols for the following strobe manufacturers: Mircom, Amseco, System Sensor, Gentex, Faraday and Wheelock
	Relay contacts for Common Alarm, Auxiliary/Alarm (Disconnectable), Common Supervisory and Common Trouble
	Configurable Signal Silence Inhibit, Auto Signal Silence and One-Man Walk Test
	Subsequent Alarm, Supervisory, and Trouble operation
	RS-485 Interface for Remote LED Annunciators, LCD Annunciators and Remote Smart Relay Modules
	Interface for a Remote Trouble Indicator (RTI)
	Two event history logs comprised of a 200 event alarm log for alarm related events and a 200 event general log for all other events
	Support i3 Series Smoke Detectors
	5 Amp Power Supply
	Optional modules for additional internal relay circuits and City Tie/Polarity Reversal
	Optional trim ring for semi-flush mounting
Input Voltage	120VAC @ 60Hz / 240VAC @ 50Hz
Standby Power	24VDC standby batteries
Charging Capability	10 AH
Current Consumption Alarm	366mA
Current Consumption Standby	136mA
Dimensions	26”H x 14.5”W x 4.5”D
