| Product Type |

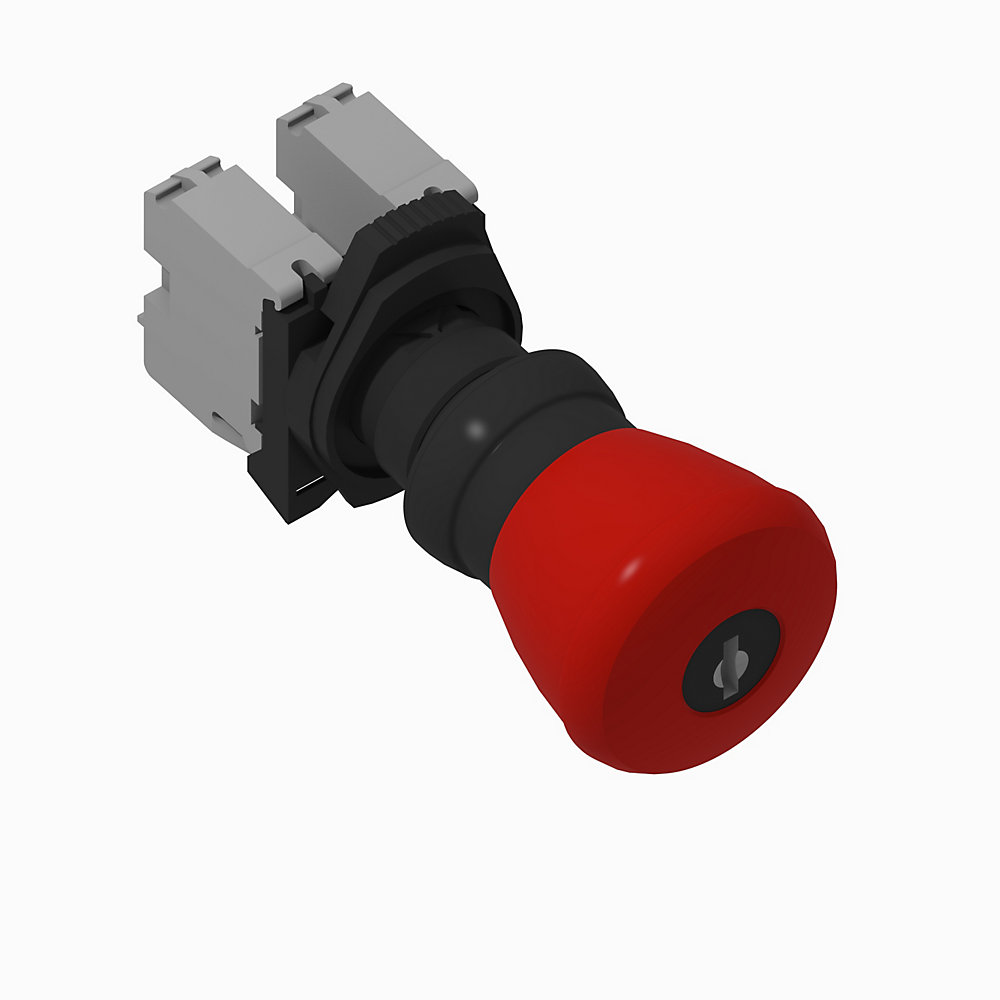

22mm Twist To Release E-Stop
|
|---|
| Number of contacts as normally closed contact |
2
|
|---|---|
| With lighting |
False
|
| Contact block thermal current rating |
10 A
|
| Contact block utilization category (AC) |
A600, AC 15 – screw termination
|
| Contact block utilization category (DC) |
Q600, DC-13 – screw termination
|
| Contact block operational voltage, max |
600V (A600, Q600) – screw termination
|
| iameter cap |
40 mm
|
|---|---|
| Hole diameter |
22.5 mm
|
| Unlocking method |
Key-release
|
| Operator mechanical design life (cycles, min.) |
300000
|
| Contact block type |
Standard
|
| Operator cap type |
Mushroom head
|
| Operator construction/material |
Plastic
|
| Operator type |
40 mm twist to release keyed
|
| Operator function |
22 mm twist to release E-stop
|
| Vibration |
10 G
|
| Contact block configuration |
2 NC
|
| Contact block termination wire range |
#18…12 AWG (0.75…2.5 mm²)
|
| Contact block termination tightening torque |
6 – 8 in-lb / 0.7 – 0.9 N-m
|
| Shock |
100 G
|
| Enclosure compatibility |
IP69K, IP66, Type 4/4X/13 (round plastic operator)
|
| Operator lock key code, standard |
3825
|
| Contact block mounting style |
Latch
|
| Contact block durability |
10000000 cycles
|
| Connection type auxiliary circuit |
Screw connection
|
|---|---|
| Operator cap/button material |
Plastic
|
| Latch material |
Plastic
|
| Operator cap color |
Red
|
| Termination style |
Screw contact block
|
| Operator cap/button size |
40 mm twist to release keyed
|
| Mounting method |
Surface mounting
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-40 °C
|
| Humidity |
≤95% RH from 25…60 °C (77…140 °F)
|
