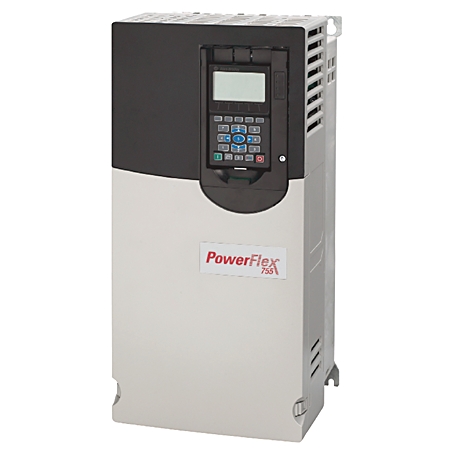

20G11NC104JA0NNNNN PowerFlex Air Cooled 755 AC Drive

20G11NC104JA0NNNNN PowerFlex Air Cooled 755 AC Drive

Request QuoteAdd to Request
SKU: 20G11NC104JA0NNNNN Category:
Share:

Sales Commitments

100% Genuine & Brand New Products

Official Manufacturer Warranty

Guaranteed Authenticity

After-Sales Service Support by Servo Dynamics

Fast Delivery Support on the Same Day*

*For all in-stock products

Product Details

BASE DRIVE INFORMATION
Bulletin Number PowerFlex 755 AC Drive, with Embedded Ethernet/IP
Corrosive Gas Protection and Cooling Type Standard Protection, Forced Air
Voltage Class 400 VAC, 3 PH
Output Current 104 Amps, 55kW ND, 45kW HD
Enclosure Type Open Type
Input Type AC Input with DC Terminals
Frame Size Frame 5
EMC Filtering Options Filtered, CM jumper installed (preferred)
Dynamic Braking DB Transistor
HIM Blank (No HIM)

Replacement Parts

Product Type Drive Option(s)
Catalog Number 20-750-ENC-1
Description PF750 Incremental Encoder Module
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-DENC-1
Description PF750 Dual Incremental Encoder Module
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-UFB-1
Description PF750 Universal Feedback Module
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-FLNG1-F5
Description PF750 Flange Adapter, Type 1, Frame 5
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-EMC1-F5
Description PF750 EMC Plate & Cores, Frame 5, 400/480V
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-EMC2-F45
Description PF750 EMC Cores, Frames 4 and 5, 400/480V
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-NEMA1-F5
Description PF750 NEMA 1 Kit, Frame 5
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-FLNG1-F5
Description PF750 Flange Adapter, Type 1, Frame 5
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-EMC1-F5
Description PF750 EMC Plate & Cores, Frame 5
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-EMC2-F45
Description PF750 EMC Cores, Frames 4 and 5
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-NEMA1-F5
Description PF750 NEMA 1 Kit, Frame 5
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-CNETC
Description PF750-Series ControlNet Coax
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R1-SCRWTB-EIO
Description 11-series I/O Card Terminal Block
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-DNET
Description PowerFlex 750-Series DeviceNet Option Card
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-750-20COMM
Description PowerFlex 750-Series 20-COMM-* Adapter Card
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-HIM-A6
Description PowerFlex Architecture Class Enhanced HIM, NEMA 1
Quantity 1
Product Type Drive Option(s)
Catalog Number 20-HIM-C6S
Description PowerFlex Architecture Class Remote Enhanced HIM, IP66 (NEMA 4X/12) Indoor Use Only
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R1-TB-UFB-1
Description PF750 Universal Feedback Terminal Blocks
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R1-TB-2262
Description PF750 2262 I/O Terminal Blocks
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R1-TB-APS
Description PF750 APS Terminal Block
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R1-TB-S
Description PF750 Safe Torque Off Terminal Block
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R1-TB-S1
Description PF750 Safe Speed Monitor Terminal Blocks
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R1-TB-ENC-1
Description PF750 Single Encoder Terminal Block
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R1-TB-DENC-1
Description PF750 Dual Encoder Terminal Block
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R1-CVR1-F5
Description PF750 Open / NEMA 1 Cover, Fr 5
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R9-CHSS1-F5
Description PF750 Open / NEMA 1 Chassis, Fr 5
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R9-FAN11-F5A
Description PF750 Opn/N1 HSFan,F5,400-480V upto 75HP
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R9-FAN11-F5B
Description PF750 Open/NEMA1 HS Fan, Fr5, 400V, 55kW
Quantity 1
Product Type Drive Option(s)
Catalog Number SK-R9-FAN2-F45
Description PF750 Internal Fan Kit, Frames 4 and 5
Quantity 1
Product Type Level 1 Spare Part(s) – Recommended Maintenance and Spare Parts
Catalog Number SK-R1-MCB1-PF755
Description PF755 Main Control Board, Frames 1-7
Quantity 1
Product Type Level 2 Spare Part(s) – Circuit Boards and Sub-Assemblies
Catalog Number SK-R1-TB-PF755
Description PF755 Main Control Board Terminal Blocks
Quantity 1
Product Type Level 2 Spare Part(s) – Circuit Boards and Sub-Assemblies
Catalog Number SK-R1-POD1
Description PF750 Control Pod, Frames 1-7
Quantity 1
Product Type Level 2 Spare Part(s) – Circuit Boards and Sub-Assemblies
Catalog Number SK-R1-BP1
Description PF750 Backplane Interface
Quantity 1
Product Type Miscellaneous Hardware and Cables
Catalog Number SK-R1-CR1
Description PF750 Pod HIM Cradle
Quantity 1
Product Type Miscellaneous Hardware and Cables
Catalog Number SK-R1-PC1
Description PF750 Power Interface Cable, Frames 1-7
Quantity 1
Product Type Miscellaneous Hardware and Cables
Catalog Number SK-R1-PJ1-F25
Description PF750 Power Jumper Screws, Frames 2 – 5
Quantity 1
