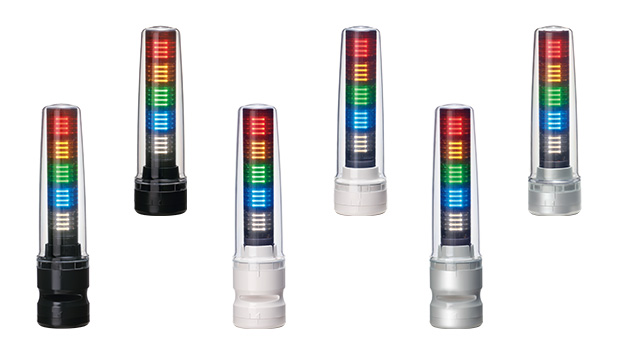

Φ70mm LED Signal Light

Name: Φ70mm LED Signal Light - Servodynamics
SKU: LS7-302DWH-RYGNN

Engineered for sanitary and harsh industrial environments, the LS7 Series Φ70mm LED Signal Light offers IP65 protection, clear signaling, and easy M12 connector installation.

Request Quote Add to Request

SKU: LS7-302DWH-RYGNN Category: Industrial Automation

100% Genuine & Brand New Products

Official Manufacturer Warranty

Guaranteed Authenticity

After-Sales Service Support by Servo Dynamics

Fast Delivery Support on the Same Day*

*For all in-stock products

Description

Smooth body, non-metallic enclosure for efficient water and dust runoff
Highly-efficient, unambiguous visual signaling
Lens cover is constructed from shock-resistant polycarbonate
Buzzer tones are specially designed to be heard above machine noise
M12 connector for quick and easy installation
Brackets available in all ABS plastic

Specifications

Dimensions	Φ70mm
Rated Voltage	24V DC
Body Color	Off White Off Dark Gray Silver
Mounting Location	Indoor Use
Mounting Direction	Upright Position
Number of Tiers	3 or 5 LED color segments
Module Colors	Red Amber Green Blue White
Audible Style	Lead Wires Type – Buzzer 1 : Approx. 82dB – Buzzer 2 : Approx. 85dB M12 Connector Type Approx. 82dB
Conformity Standards	CE (24V only) UL Component Recognition (US) c-UL Component Recognition (Canada) RoHS
Protection Rating	IP65 (Illumination Type) IP54 (Buzzer Type)
